NEW POWER!

LINE-UP

service-image
Adoptable injection press range
1600ton-
Max. loading capacity
60kg
Product vertical stroke
2000[2500][3500]mm
service-icon

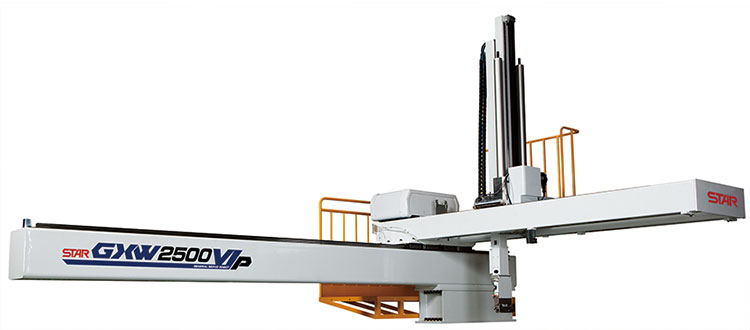

GXW-2500VIP/IXW-2500VIP

Specification (PDF)

3D CAD analysis and design verification ensures both rigidity and weight reduction of all axes. Blurring of the tip of the arm has been minimized by anti-vibration control. Supports insert molding and precision molding, too.

Vertical units are made of steel, which is three times stiffer than aluminum, while reducing unit weight by 10% (compared to our FM series). The high loading capacity of this unit makes it possible to handle even for ultra large class of injection molding machines with high speed.

service-image
Adoptable injection press range
1600ton-
Max. loading capacity
40[60]kg
Product vertical stroke
2000[2500][3200]mm
service-icon

GXW-2000VIP/IXW-2000VIP

Specification (PDF)
service-image
Adoptable injection press range
2200ton-
Max. loading capacity
80kg
Product vertical stroke
2500[3200]mm
service-image
Adoptable injection press range
1600ton-
Max. loading capacity
40[60]kg
Product vertical stroke
2000[2500]mm
service-icon

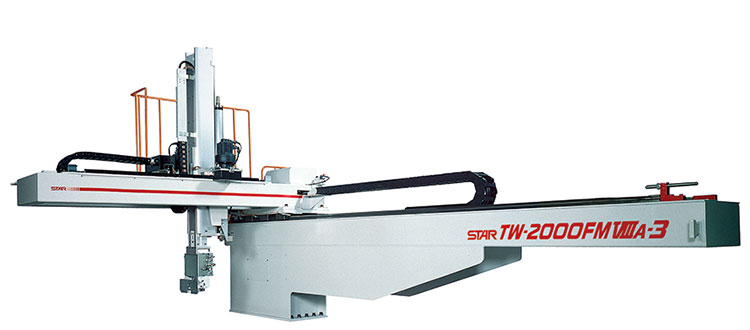

TW-2000FMVIIIA-3 / TW-2500FMVIIIA-3

Specification (PDF) Specification (PDF)

TW series has maximum payload of 80Kg for ultra large Injection molding machine. This series contributes to production efficiency with precise product extraction by anti-vibration control.

Product vertical stroke (mm)

0 (0)

IXW-2500VIP/GXW-2500VIP

Max. loading capacity (kg)

0

TW-2500FMVIIIA-3

State-of-the-art series which are loaded with features for quick and accurate operation

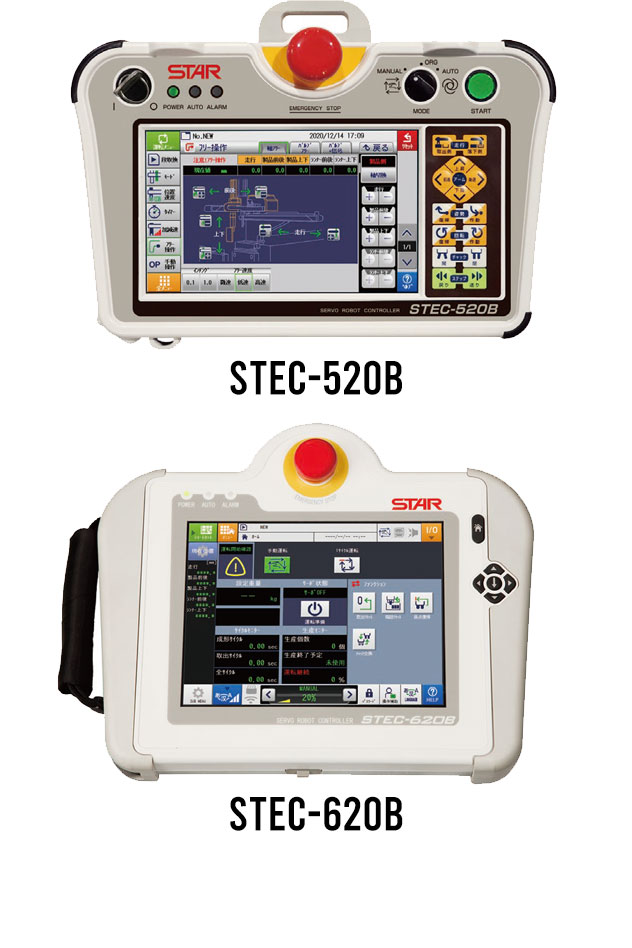

NEW CONTROLLER

STEC-520B

Standard equipped with GX models. All-round controller which can meet various demands for automation. Promotes FA with various functions.

  • 7 inch wide LCD is used to improve touch panel response.
  • Menu screen is always displayed on the left side.
  • Enter a series of phrases when converting characters is made possible.
  • Operation (automatic/manual) mode select switch
service-avater-image

STEC-620B

Standard equipped with IX models. With OS, multi-touch controller with superior operability can communicate with various devices and production system. Promotes FA with various functions.

  • improvement of touch panel response.
  • adopted interactive mode settings
  • Product picture can be registered in mold change file.
  • Frequently used menu items can be registered as shortcuts in the left column.
  • Enter a series of phrases when converting characters is made possible.
  • Ultra large type molding system

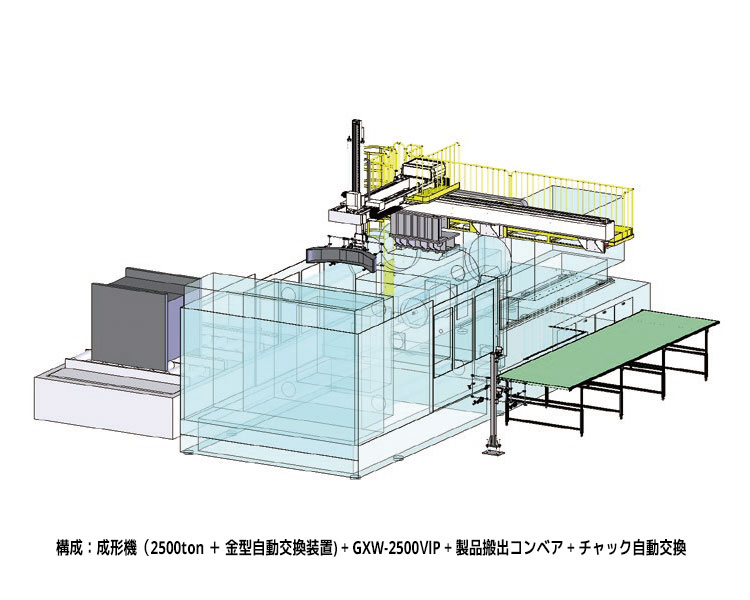

Ultra large type molding system

Layout Example

project-image

  • Exchange of chuck attachment on ultra large robot has been automated.

    Reduction of mold-change time is essential for ultra large robots.　Automatic mold change as well as automatic chuck change can be done at low price and in a small space.

  • High rigidity allows quick and accurate product release motion

    Release operation at release side is safe due to high rigid body. Two-step speed switching function is equipped as a standard function. Releasing operation can be done accurately with no time loss.

  • IoT compatible by installing STEC-620B(option)

    By using OS mounted controller, communication over Ethernet is now possible. Realize communication not only with molding machines and ancillary equipment, but also with remote monitoring and customer production systems.
