Compatible with TM Robot
Robot Cable Protection System
Limits twisting to ±15° per link, preventing excessive localized strain.
Ideal for routing robot wiring, allowing for smooth tracking of complex bends and rotations.
The cover can be opened and closed without tools, reducing maintenance time and effort.
Uses hook-and-loop fasteners for easy attachment to robotic arms.
Video available here on how to install it.
Compatible with collaborative robots thanks to the hook-and-loop fastener design, which enables secure arm mounting.
【 Materials Used 】
Bracket Holder: Nylon
Hook-and-Loop Fastener: Nylon
| Model | Inner Width(mm) | Min Inner Width(mm) | Bend Radius R(mm) | Pitch(mm) | Max Twist per Module(mm) | Max Cable/Hose Diameter(mm) | Cable/Hose Capacity Range(mm) | Optional Items | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Fixed Bracket | Mid Bracket | Joint Cover | ||||||||
| KSF–25-060 | 11.5 | φ27.5 | 60 | 16.5 | ±15 | φ9 | φ22 | |||
| KSF–35–070 | 16 | φ37 | 70 | 20 | ±15 | φ13 | φ31 | |||
| KSF–50–110 | 24.25 | φ53.5 | 110 | 20 | ±15 | φ21 | φ47.5 | |||

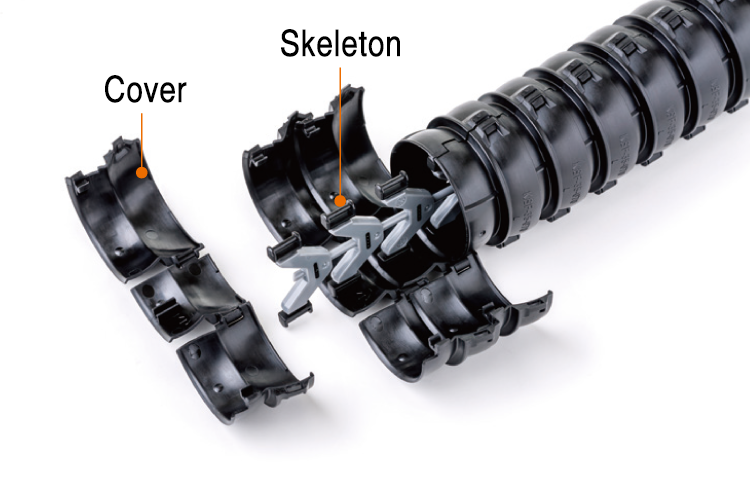

Main Unit
Joint Cover（Optional extension component）
Fixed Bracket

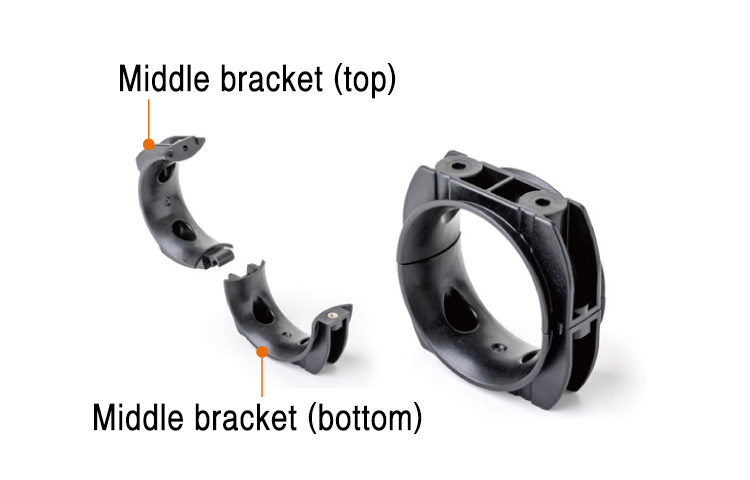

Mid bracket
