Take-out robot for Injection molding machine

  1.
  2. Side-entry type Take-out robot
サイドエントリー型ロボット
射出成形用取出ロボット

Take-out robot for Injection molding machine

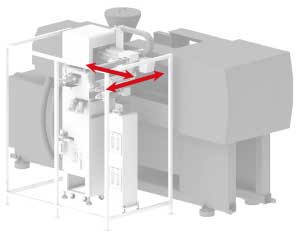

Side-entry type Take-out robot

Established style as a standard for small sized high-cycle molding.Compatible with the ultimate low ceiling and can be selected as clean room compatible robot that does not allow dust adhere to the product

  • 微細成形品取出対応
    Corresponds to extraction of fine molded products

    Servo-driven Side entry type robot contributes to stable production with high speed yet low vibration for extraction of fine molded product, etc.

  • Adaptable Injection Press5~40 tonMax. loading capacity2 kg

    Controller：STEC-520B

    TZW-500P / TZW-500SP
    Catalogues
    example : extraction of fine molded products + cavity dividing system

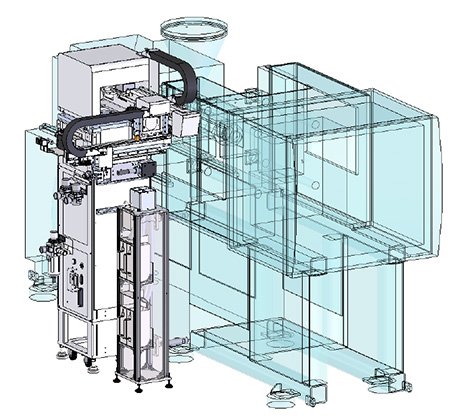

    Basic layout of floor-standing side-entry robot
    • Injection Molding Machine (30ton)
    • TZW-500P
    • Cavity divider stocker
    標準取出ロボット

    Adaptable Injection Press20~40 tonMax. loading capacity2 kg

    Controller：STEC-520B

    TZWD-750P / TZWD-750SP
    Catalogues

    Adaptable Injection Press10~20 tonMax. loading capacity1 kg

    ZIM-500 / ZIM-500S
    Catalogues
  • STPタイプ
    Corresponds to extraction of middle classed high cycle molding

    Strongly backs up high-speed molding of media-related items, food containers and thin-walled containers, and shortens total molding time.

  • Adaptable Injection Press250~350 tonMax. loading capacity3 kg

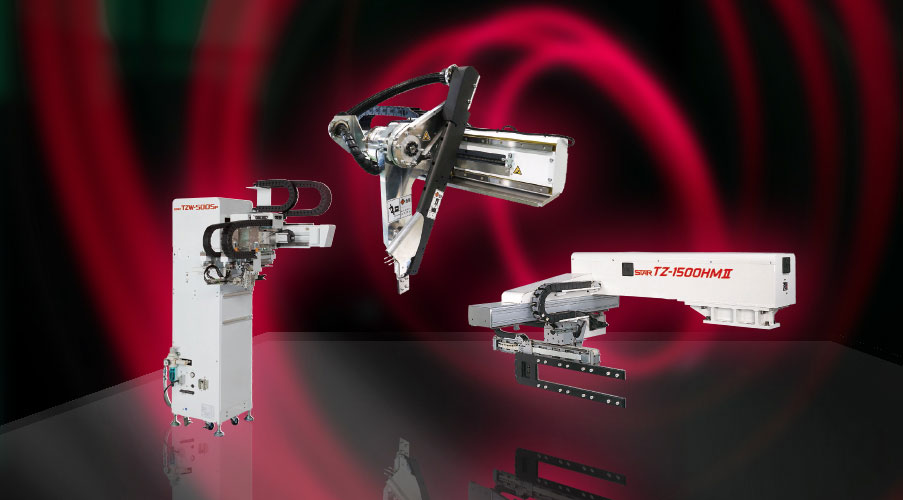

    TZ-1500HMII
    Catalogues
