Take-out robot for Injection molding machine

  1.
  2. Parallel traverse type Take-out robot
縦走行型取出ロボット
射出成形用取出ロボット

Take-out robot for Injection molding machine

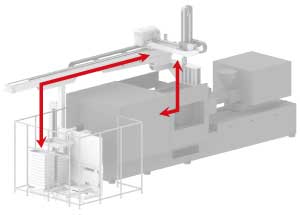

Parallel traverse type Take-out robot

Effective use of factory site realizes spacious factory space.Lineup from small to ultra large type of robots, achieves both operator safety and workability improvement.

  • Hタイプ
    H type

    Best-selling type that meets various molding site requirements and improves productivity

  • Adaptable Injection Press40~150 tonMax. loading capacity3 kg

    Controller：STEC-520B(GX) / STEC-620B(IX)

    GX-600HVIP / IX-600HVIP
    Catalogues

    Adaptable Injection Press100~300 tonMax. loading capacity5 kg

    Controller：STEC-520B

    GX-800HVIP
    Catalogues

    Adaptable Injection Press100~300 tonMax. loading capacity5 kg

    Controller：STEC-520B

    GXW-800HVIP
    Catalogues

    Adaptable Injection Press100~300 tonMax. loading capacity8 kg

    Controller：STEC-620B

    IXW-800HVIP
    Catalogues

    Adaptable Injection Press200~650 tonMax. loading capacity10 kg

    Controller：STEC-520B

    GXW-1200HVIP
    Catalogues

    Adaptable Injection Press200~650 tonMax. loading capacity15 kg

    Controller：STEC-620B

    IXW-1200HVIP
    Catalogues

    Adaptable Injection Press450~1800 tonMax. loading capacity25 kg

    Controller：STEC-520B

    GXW-1500HVIP
    Catalogues

    Adaptable Injection Press850~2000 tonMax. loading capacity35 kg

    Controller：STEC-520B(GXW) / STEC-620B(IXW)

    GXW-1800HVIP / IXW-1800HVIP
    Catalogues
  • STPタイプ
    STP type

    High-performance type that combines scalability with the latest technology and one-class ahead performance

  • Adaptable Injection Press100~300 tonMax. loading capacity5 kg

    Controller：STEC-520B(GXW) / STEC-620B(IXW)

    GXW-800STPVIP / IXW-800STPVIP
    Catalogues

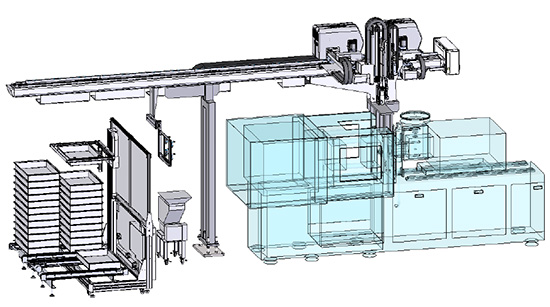

    Product stock example with NT gate-cut device
    Packaging to container after runner gate cutting
    • Injection Molding Machine (180ton)

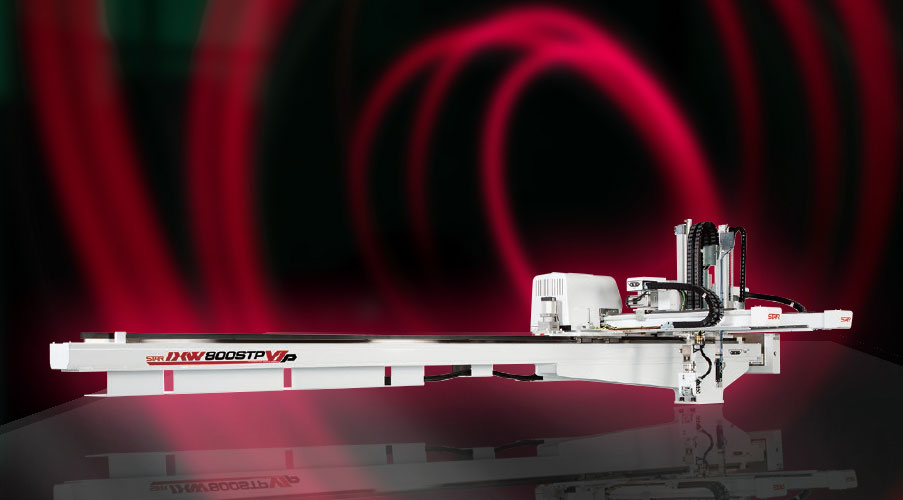

    • GXW-800STPⅥP
    • Pallet Changer M
    Packaging after Gate-cut operation is possible on parallel traverse robot, too.

    Gate-cut operation is possible during mid-traverse position, and layout for packaging system is space-saving, too.

    STEC-620B(IXW type)Compatible with IoT by mounting OS.

    Communication over Ethernet is made possible by adopting OS installed controller. Not only with IMM and/or auxiliary equipment, but also remote control and communication with customers’ production system

    標準取出ロボット

    Adaptable Injection Press200~650 tonMax. loading capacity10 kg

    Controller：STEC-520B(GXW) / STEC-620B(IXW)

    GXW-1200STPVIP / IXW-1200STPVIP
    Catalogues

    Adaptable Injection Press850~2000 tonMax. loading capacity35 kg

    Controller：STEC-520B(GXW) / STEC-620B(IXW)

    GXW-1800STPVIP / IXW-1800STPVIP
    Catalogues
  • 低天井対応大型クラス取出ロボット
    Low ceiling compatible large size Take-out robot

    Specialized Take-out robot that improves productivity without compromising performance even in low-ceiling production sites

  • Adaptable Injection Press850~2000 tonMax. loading capacity35 kg

    Controller：STEC-520B(GXW) / STEC-620B(IXW)

    GXW-1800STPVIP[Oversized] / IXW-1800STPVIP[Oversized]
    Catalogues
  • フレキシブルタイプ
    Flexible type

    Take-out robot to improve productivity of extra-large injection molding machines with high power and long stroke

  • Max. loading capacity15 kg

    Controller：STEC-520B / STEC-620B

    T-2015
    Catalogues
