Take-out robot for Injection molding machine

横走行型取出ロボット
射出成形用取出ロボット

Take-out robot for Injection molding machine

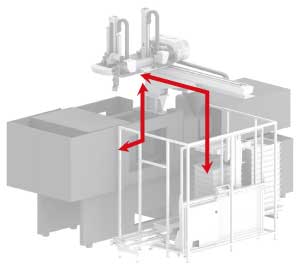

Traverse type Take-out robot

Standard Take-out robot in injection molding industryExtensive lineup from small to extra large robots for wide range of businesses

  • 標準取出ロボット

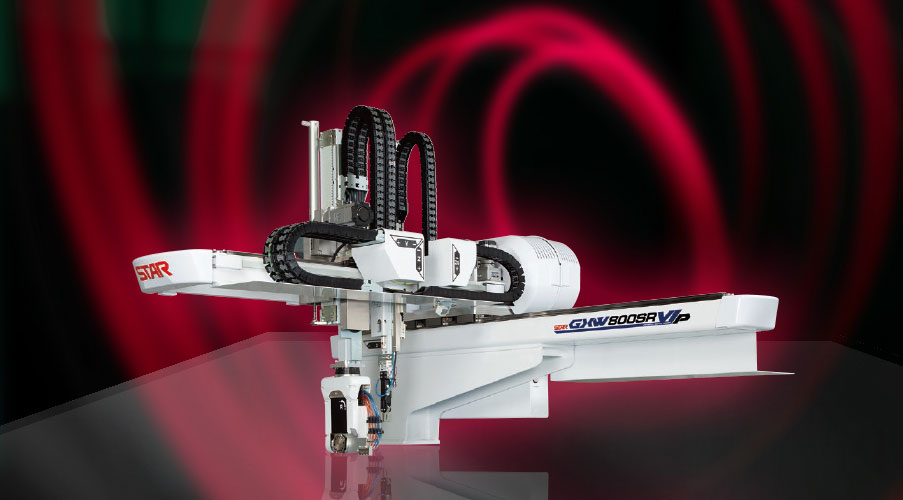

    Standard type Take-out robot(GX-VI P)

    Best-seller series to enhance productivity by meeting the various demand of injection molding site.

  • Adaptable Injection Press~60 tonMax. loading capacity2 kg

    Controller:STEC-520B

    GX-400VIP / GX-400SVIP
    Catalogues

    Adaptable Injection Press40~150 tonMax. loading capacity3 kg

    Controller:STEC-520B

    GX-600VIP / GX-600SVIP
    Catalogues
    Example of system with NT Gate cut
    Example of stock system with auto gate cut and conveyor
    • Injection molding machine(50ton)
    • GX-600SⅥP(NT gate cut)
    • SEC Conveyors
    標準取出ロボット

    Adaptable Injection Press100~300 tonMax. loading capacity5 kg

    Controller:STEC-520B

    GX-800VIP / GX-800SVIP
    Catalogues

    Adaptable Injection Press100~300 tonMax. loading capacity5 kg

    Controller:STEC-520B

    GXW-800VIP / GXW-800SVIP
    Catalogues

    Adaptable Injection Press100~300 tonMax. loading capacity8 kg

    Controller:STEC-520B

    GXW-800RVIP / GXW-800SRVIP
    Catalogues

    Adaptable Injection Press200~650 tonMax. loading capacity10 kg

    Controller:STEC-520B

    GXW-1200VIP / GXW-1200SVIP
    Catalogues

    Adaptable Injection Press200~650 tonMax. loading capacity15 kg

    Controller:STEC-520B

    GXW-1200RVIP / GXW-1200SRVIP
    Catalogues

    Adaptable Injection Press450~1800 tonMax. loading capacity25 kg

    Controller:STEC-520B

    GXW-1500VIP / GXW-1500SVIP
    Catalogues

    Adaptable Injection Press850~2000 tonMax. loading capacity35 kg

    Controller:STEC-520B

    GXW-1800VIP / GXW-1800SVIP
    Catalogues
  • ハイパフォーマンス取出ロボット
    High performance Take-out robot(IX-VI P)

    High performance type with Extensibility with the latest technology as well as one-class ahead quality

  • Adaptable Injection Press~60 tonMax. loading capacity2 kg

    Controller:STEC-620B

    IX-400VIP / IX-400SVIP
    Catalogues

    Adaptable Injection Press40~150 tonMax. loading capacity3 kg

    Controller:STEC-620B

    IX-600VIP / IX-600SVIP
    Catalogues

    Adaptable Injection Press100~300 tonMax. loading capacity8 kg

    Controller:STEC-620B

    IXW-800VIP / IXW-800SVIP
    Catalogues
    Example of Product Stock System linked with Insert Feeder
    Supports insert molding in conjunction with Scara robot-mounted on parts feeder
    • Injection Molding Machine(150ton)
    • IXW-800SVIP(Insert specofication)
    • Insert Feeding system
    OS-equipped controller enables linkage with complex robots

    In case of high-cycle insert molding by small sized IMM, we respond to various requests such as multi point insert which linked with Scala robot etc.

    IXW-800ⅥP gives the best performance for insert molding.

    Robots with enhanced payload corresponds to heavy insert chuck plate, and ensures insert motion with high rigidity.

    標準取出ロボット

    Adaptable Injection Press200~650 tonMax. loading capacity15 kg

    Controller:STEC-620B

    IXW-1200VIP / IXW-1200SVIP
    Catalogues

    Adaptable Injection Press850~2000 tonMax. loading capacity35 kg

    Controller:STEC-620B

    IXW-1800VIP / IXW-1800SVIP
    Catalogues
  • 低天井対応タイプ
    Low-ceiling compatible type

    Without compromising the performance even at low-ceilinged production site, exclusively-designed Take-out robot can improve the productivity.

  • Adaptable Injection Press850~2000 tonMax. loading capacity35 kg

    Controller:STEC-520B(GXW) / STEC-620B(IXW)

    GXW-1800YVIP / IXW-1800YVIP
    Catalogues
  • 超大型タイプ
    Ultra large type

    Enhance the productivity of ultra large size Injection molding machine with high power and long stroke.

    Special Site
  • Adaptable Injection Press1600~3500 tonMax. loading capacity40[60] kg

    Controller:STEC-520B(GXW) / STEC-620B(IXW)

    GXW-2000VIP / IXW-2000VIP
    Catalogues

    Adaptable Injection Press1600~3500 tonMax. loading capacity40[60] kg

    Controller:STEC-520B(GXW) / STEC-620B(IXW)

    GXW-2500VIP / IXW-2500VIP
    Catalogues

    Adaptable Injection Press1600~3500 tonMax. loading capacity40[60] kg

    Controller:STEC-520B ( STEC-620B )

    TW-2000FMVIIIP-3
    Catalogues

    Adaptable Injection Press2200~6000 tonMax. loading capacity80 kg

    Controller:STEC-520B ( STEC-620B )

    TW-2500FMVIIIP-3
    Catalogues
  • 高速取出タイプ
    High-speed extract type

    Durable and light weight unit is adopted. This high speed type of robots contribute to stable production in high speed molding.

  • Adaptable Injection Press150~220 tonMax. loading capacity3 kg

    Controller:STEC-520B

    ZPX-800
    Catalogues

    Adaptable Injection Press150~220 tonMax. loading capacity3 kg

    Controller:STEC-520B / STEC-620B

    ZXW-800VIP / ZXW-800SVIP
    Catalogues

    Adaptable Injection Press300~850 tonMax. loading capacity10 kg

    Controller:STEC-520B / STEC-620B

    ZXW-1200VIP / ZXW-1200SVIP
    Catalogues

    Adaptable Injection Press850~2000 tonMax. loading capacity25 kg

    Controller:STEC-520B(GXW) / STEC-620B(IXW)

    GXW-1800MVIP / IXW-1800MVIP
    Catalogues
  • 3軸NCユニット
    OPTION FUNCTION: 3 axis NC unit
    Realizes handling like an articulated robot

    Expanded operating range of the posture unit allows greater freedom of insert operation, workpiece release, gate cut operation, etc.

  • Specification
    unit Payload Supported model : IX/GX-VIP series
    small size 5kg IXW-800/GXW-800R
    middle size 10kg IXW-1200/GXW-1200R
    large size 15kg
    25kg
    GXW-1500R
    IXW-1800(M)/GXW-1800(M)
    view catalogue
  • クリーンルーム対応タイプ
    OPTION Cleanroom Specification
    High-precision and high-quality Take-out robot in a clean room

    VIP series Take-out robot can be optionally equipped with a cleanroom-compatible cover specification and a suction blower specification. The full cover option can be installed not only on double vertical structure models but also on single vertical structure models with high overall height to meet user needs, thus providing cost advantages.

  • Catalogues
  • 2色射出成形機対応タイプ
    Double Injection molding machine compatible type

    Using one unit of Take-out robot for parallel nozzle type 2 color molding machine, primary side runner discharge and secondary side product extraction can be automated.

  • Adaptable Injection Press100~300 ton

    Controller:STEC-520B(GXW) / STEC-620B(IXW)

    GXW-800SPVIP / IXW-800SPVIP
    Catalogues
