Robot Traverse Axis Unit
Track Motion

Robot Traverse Axis Unit

Track Motion

We can help you solve your production process problems!

• TM10 series
• TM20 series
• Drawing data download

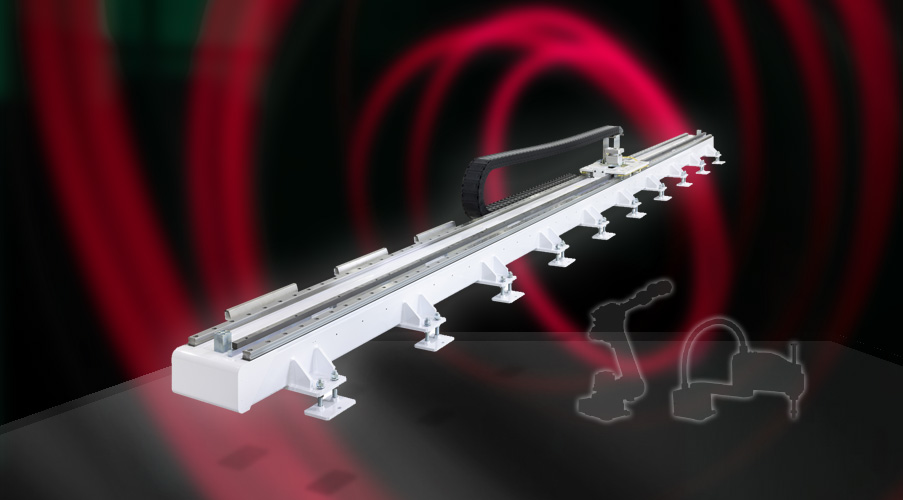

Our newly announced “Robot Traverse Axis Unit | Track Motion TM10/TM20 Series” includes two series: the "TM10 Series" with a maximum load capacity of 260 kg, and the "TM20 Series" with a maximum load capacity of 480 kg. Both series come with seven standard models with strokes ranging from 1000 mm to 7000 mm (in 1000 mm increments).

・Manufactured at the Izumo Factory who cumulatively produced total of 230,000 units of cartesian Take-Out robots.
・Quality first: ensuring quality and a reliable support system.
・Steel construction, with rack and pinion and LM guide for drive. Mechanisms.
・Compatible with varous robot manufacturers.

As more companies consider robot introduction for “labor-saving,”incorporating the “Robot Traverse Axis Unit | Track Motion” into the process enables “robot-saving”,too.

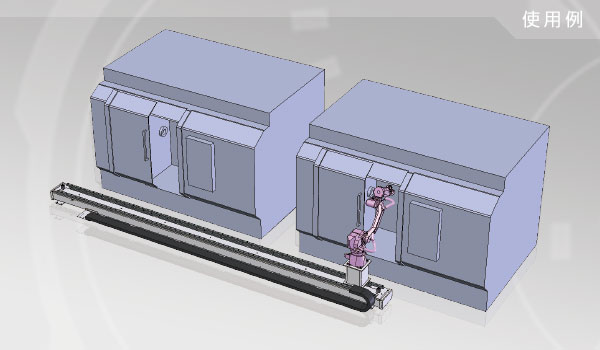

For example, let's consider a case of robot-saving between machining centers. In a factory with eight machining centers and four robots, introducing the “Track Motion” allows one robot to handle two tasks. This reduces the number of robots from four to two, achieving "robot-saving". The two robots that have been "reduced" are then moved to another process where "labor reduction" is being considered.

Star Seiki's robot "Traverse Axis Unit | Track Motion TM10/TM20 Series" can help you solve your production process challenges.

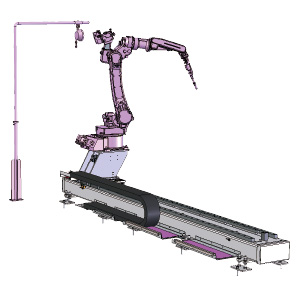

Achieves ‘multiple machines with one robot.’ Even processes that require long continuous movements can be carried out seamlessly. The seamless integrated rail eliminates shocks when traverse movement.

Robot Traverse Axis Unit =Track Motion Catalog

catalog

Robot traverse axis unit track motion operation video
